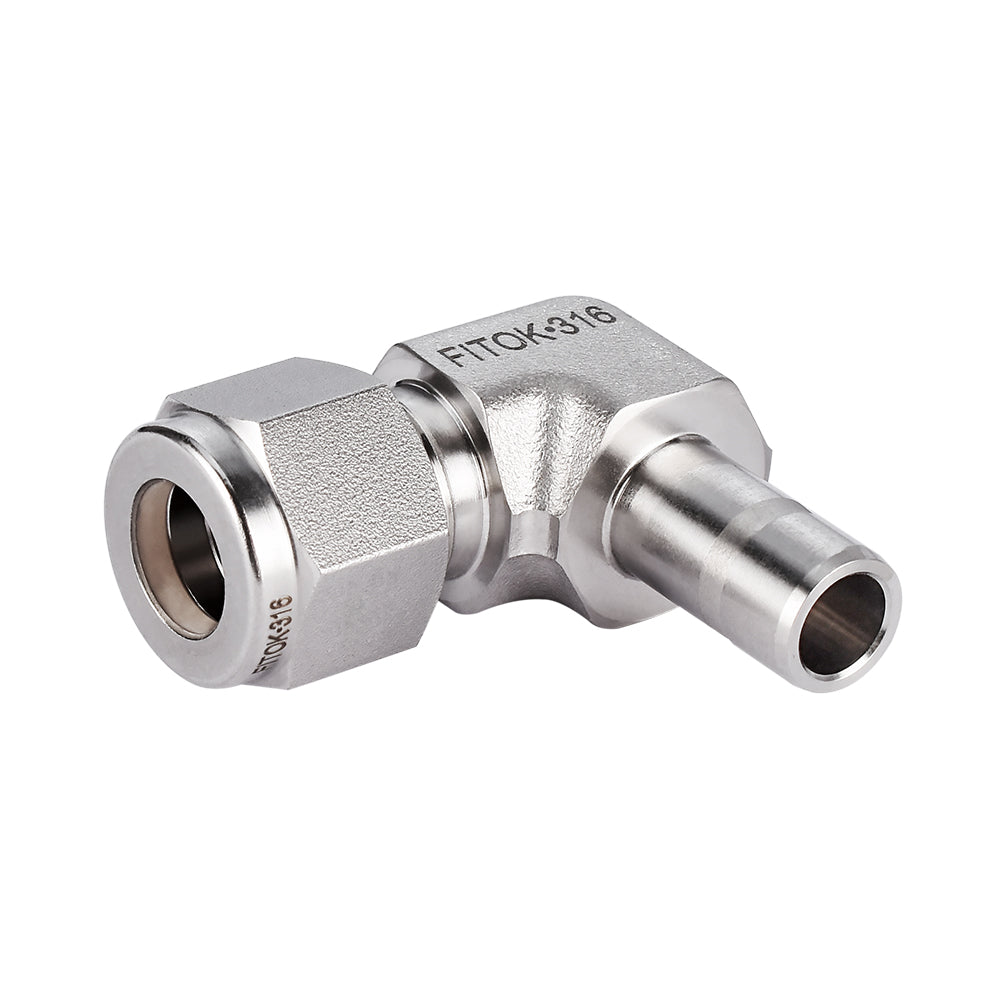

FITOK 316 Stainless Steel Tube Adapter Elbow Tube Fitting × Tube Adapter

SKU: Part Number: SS-LR-FL4-FT4

$27.97 USD

Sale Sold out

In stock

Fully ASTM F1387 certified. Tube Adapter 90 Degree Elbow with double ferrule tube fitting on one end and tube adapter on the other end, interchangeable with other major brands including Swagelok and Parker A-Lok
Features radius junction design inside the elbow, providing smooth flow path, minimizing flow resistance and enabling easy system cleaning
Precision machined components ensure perfect deformation of ferrules and tubing, providing leak-tight and vibration-resistant connections even in harsh or stressful applications
Hardened threads with smooth surface finish to avoid galling and extend service life. Nut threads are silver-plated to minimize friction against the body threads. Easy to disconnect and retighten
Manufactured from high quality 316 stainless steel for enhanced mechanical strength and corrosion resistance

Part Number	Material	Connection 1 Type	Connection 1 Size	Connection 2 Type	Connection 2 Size	Max Working Pressure
SS-LR-FL4-FT4	316 Stainless Steel	Tube Fitting	1/4"	Tube Adapter	1/4"	10200 psi
SS-LR-FL6-FT6	316 Stainless Steel	Tube Fitting	3/8"	Tube Adapter	3/8"	7500 psi
SS-LR-FL8-FT4	316 Stainless Steel	Tube Fitting	1/2"	Tube Adapter	1/4"	6700 psi
SS-LR-FL8-FT8	316 Stainless Steel	Tube Fitting	1/2"	Tube Adapter	1/2"	6700 psi
SS-LR-ML6-MT6	316 Stainless Steel	Tube Fitting	6mm	Tube Adapter	6mm	710 bar

Part Number SS-LR-FL4-FT4

Material 316 Stainless Steel

Connection 1 Type Tube Fitting

Connection 1 Size 1/4"

Connection 2 Type Tube Adapter

Connection 2 Size 1/4"

Max Working Pressure 10200 psi

Part Number SS-LR-FL6-FT6

Material 316 Stainless Steel

Connection 1 Type Tube Fitting

Connection 1 Size 3/8"

Connection 2 Type Tube Adapter

Connection 2 Size 3/8"

Max Working Pressure 7500 psi

Part Number SS-LR-FL8-FT4

Material 316 Stainless Steel

Connection 1 Type Tube Fitting

Connection 1 Size 1/2"

Connection 2 Type Tube Adapter

Connection 2 Size 1/4"

Max Working Pressure 6700 psi

Part Number SS-LR-FL8-FT8

Material 316 Stainless Steel

Connection 1 Type Tube Fitting

Connection 1 Size 1/2"

Connection 2 Type Tube Adapter

Connection 2 Size 1/2"

Max Working Pressure 6700 psi

Part Number SS-LR-ML6-MT6

Material 316 Stainless Steel

Connection 1 Type Tube Fitting

Connection 1 Size 6mm

Connection 2 Type Tube Adapter

Connection 2 Size 6mm

Max Working Pressure 710 bar
