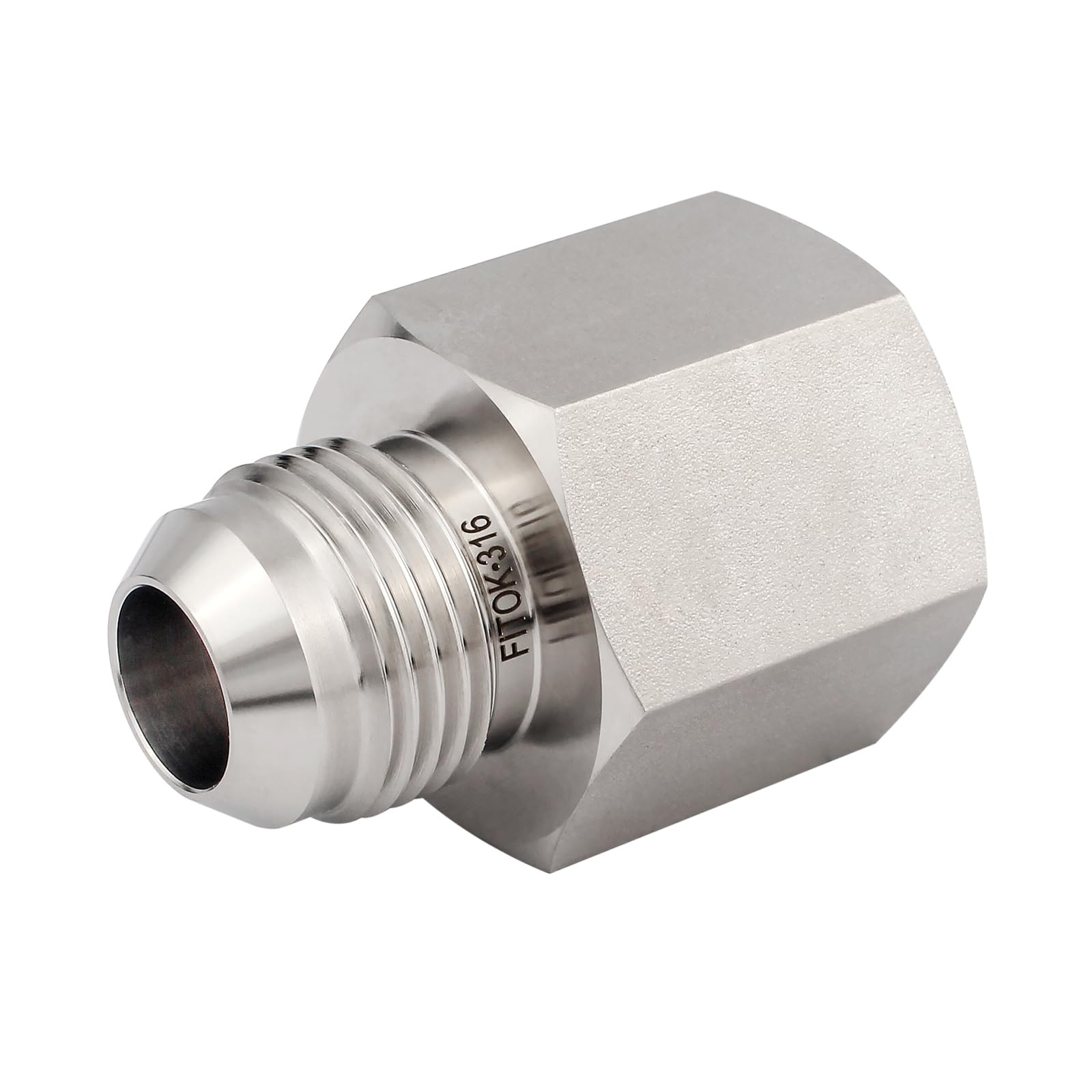

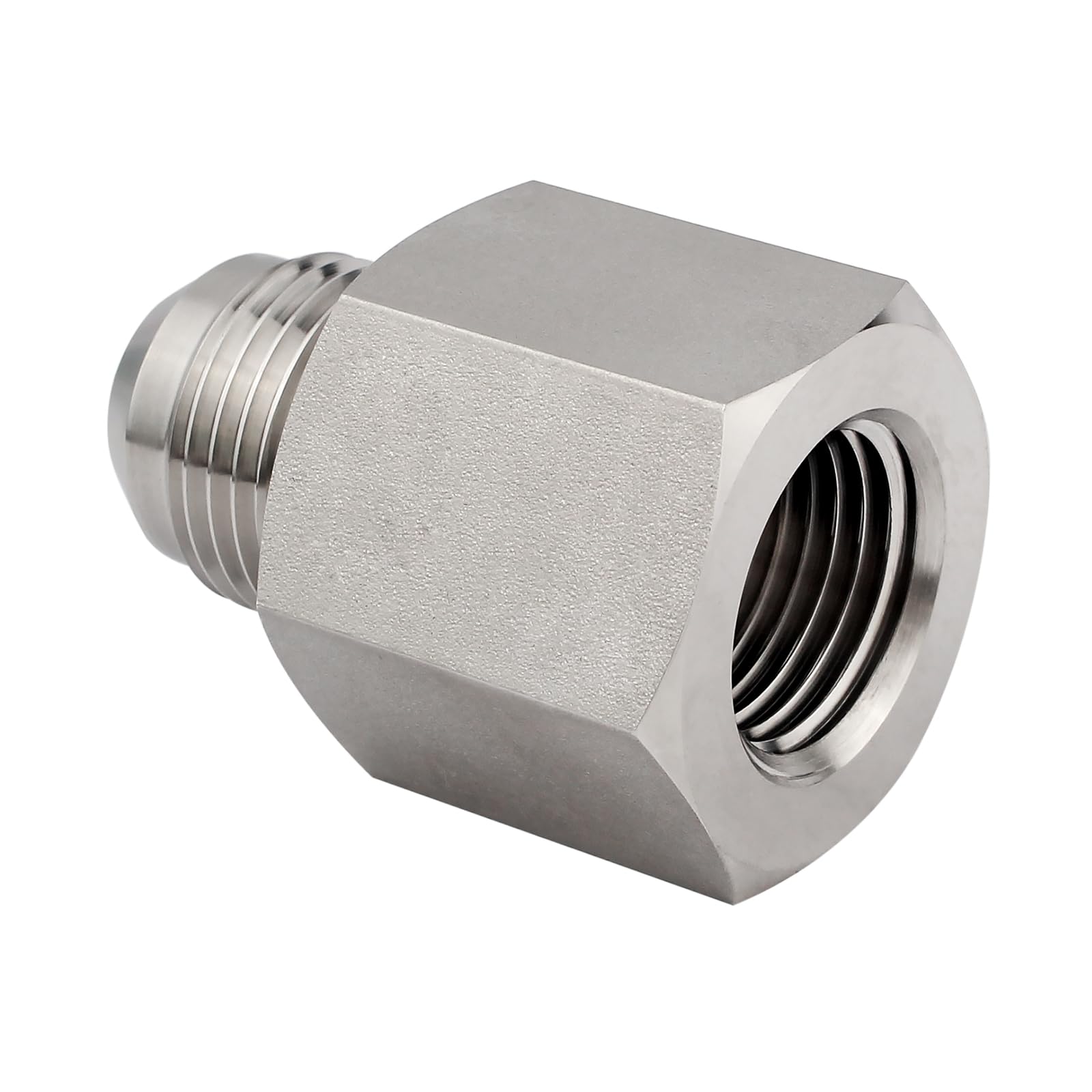

FITOK 37° Flared Tube Fitting Male JIC × Female NPT, 316 Stainless Steel

SKU: Part Number: SS-CF-AN4-NS2

$13.55 USD

Sale Sold out

In stock

Reference SAE 070103. Maximum allowable working pressure 5000 psi (varies by size — see chart below)
Manufactured from high quality 316 stainless steel for superior mechanical strength and excellent resistance to corrosion.
Precision engineered to provide leak-tight connections for high pressure fluid and gas applications
Hardened threads for optimal performance and prolonged service life
Designed and manufactured in compliance with SAE J514
Every FITOK fitting is engraved with details including connection size and type, brand name, material, and heat number, ensuring proper identification, traceability, and quality control.

Part Number	Material	Connection 1 Type	Connection 1 Size	Connection 2 Type	Connection 2 Size	Max Working Pressure
SS-CF-AN4-NS2	316 Stainless Steel	Male JIC	1/4"	Female NPT	1/8"	5000 psi
SS-CF-AN4-NS4	316 Stainless Steel	Male JIC	1/4"	Female NPT	1/4"	5000 psi
SS-CF-AN6-NS4	316 Stainless Steel	Male JIC	3/8"	Female NPT	1/4"	5000 psi
SS-CF-AN8-NS8	316 Stainless Steel	Male JIC	1/2"	Female NPT	1/2"	4500 psi
SS-CF-AN12-NS12	316 Stainless Steel	Male JIC	3/4"	Female NPT	3/4"	3500 psi

Part Number SS-CF-AN4-NS2

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 1/4"

Connection 2 Type Female NPT

Connection 2 Size 1/8"

Max Working Pressure 5000 psi

Part Number SS-CF-AN4-NS4

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 1/4"

Connection 2 Type Female NPT

Connection 2 Size 1/4"

Max Working Pressure 5000 psi

Part Number SS-CF-AN6-NS4

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 3/8"

Connection 2 Type Female NPT

Connection 2 Size 1/4"

Max Working Pressure 5000 psi

Part Number SS-CF-AN8-NS8

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 1/2"

Connection 2 Type Female NPT

Connection 2 Size 1/2"

Max Working Pressure 4500 psi

Part Number SS-CF-AN12-NS12

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 3/4"

Connection 2 Type Female NPT

Connection 2 Size 3/4"

Max Working Pressure 3500 psi
