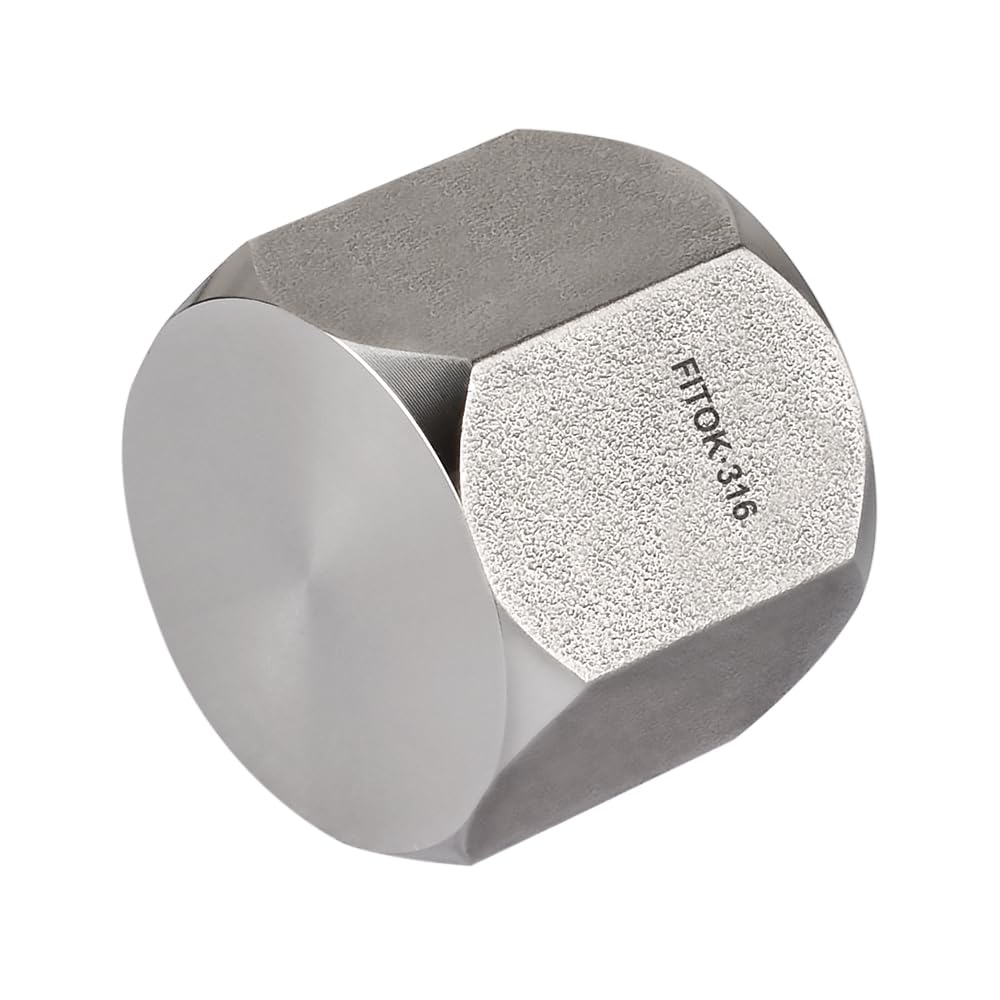

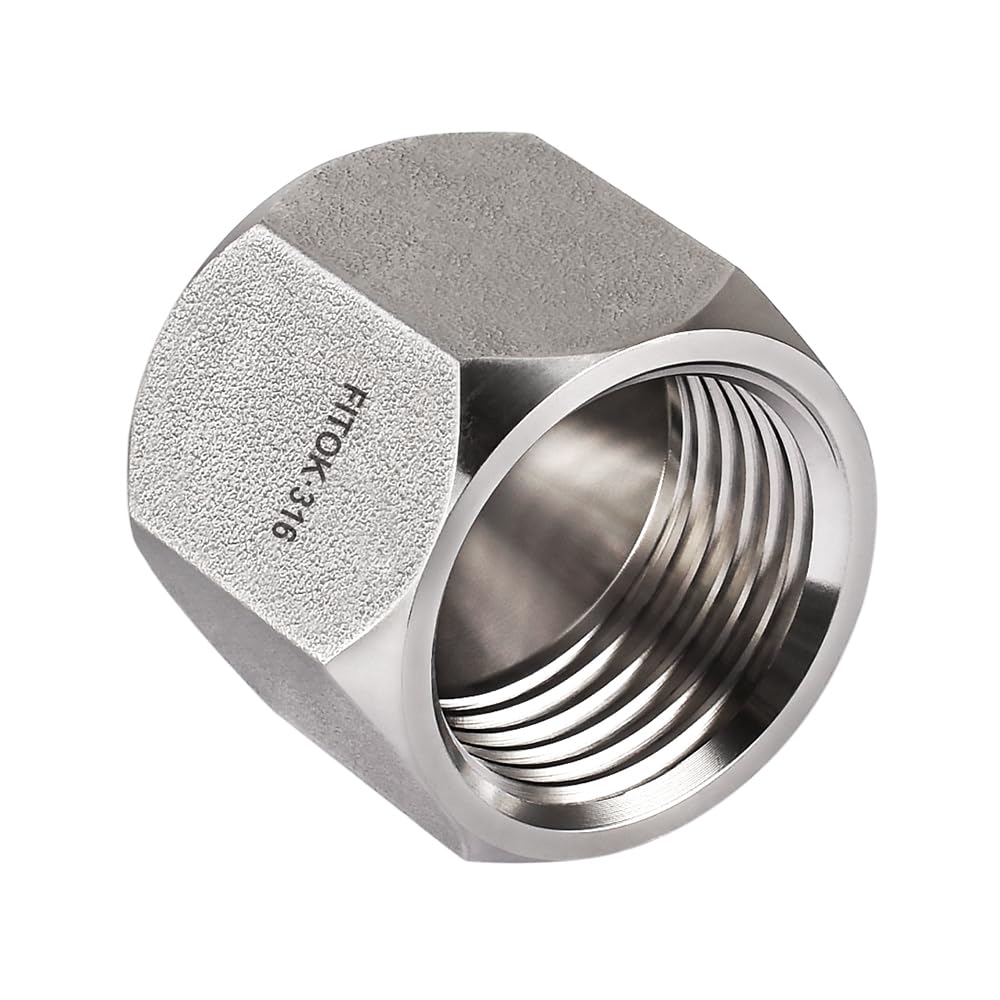

FITOK 37° Flared Tube Cap JIC Female, 316 Stainless Steel

SKU: Part Number: SS-TC-AN2

$11.00 USD

Sale Sold out

Low stock

Reference SAE 070112. Maximum allowable working pressure: 5000 psi (varies by size — see chart below)
Made from high quality 316 stainless steel for superior mechanical strength and excellent resistance to corrosion.
Precision engineered to provide leak-tight connections for high pressure fluid applications. Hardened threads with a smooth finish avoid galling, enabling easy assembly and extended fitting service life.
Designed and manufactured in compliance with SAE J514
Every FITOK fitting is engraved with details including connection size and type, brand name, material, and heat number, ensuring proper identification, traceability, and quality control.

Part Number	Material	Connection 1 Type	Connection 1 Size	Max Working Pressure
SS-TC-AN2	316 Stainless Steel	JIC	1/8"	5000 psi
SS-TC-AN4	316 Stainless Steel	JIC	1/4"	5000 psi
SS-TC-AN6	316 Stainless Steel	JIC	3/8"	5000 psi
SS-TC-AN8	316 Stainless Steel	JIC	1/2"	4500 psi
SS-TC-AN12	316 Stainless Steel	JIC	3/4"	3500 psi
SS-TC-AN16	316 Stainless Steel	JIC	1"	3000 psi

Part Number SS-TC-AN2

Material 316 Stainless Steel

Connection 1 Type JIC

Connection 1 Size 1/8"

Max Working Pressure 5000 psi

Part Number SS-TC-AN4

Material 316 Stainless Steel

Connection 1 Type JIC

Connection 1 Size 1/4"

Max Working Pressure 5000 psi

Part Number SS-TC-AN6

Material 316 Stainless Steel

Connection 1 Type JIC

Connection 1 Size 3/8"

Max Working Pressure 5000 psi

Part Number SS-TC-AN8

Material 316 Stainless Steel

Connection 1 Type JIC

Connection 1 Size 1/2"

Max Working Pressure 4500 psi

Part Number SS-TC-AN12

Material 316 Stainless Steel

Connection 1 Type JIC

Connection 1 Size 3/4"

Max Working Pressure 3500 psi

Part Number SS-TC-AN16

Material 316 Stainless Steel

Connection 1 Type JIC

Connection 1 Size 1"

Max Working Pressure 3000 psi
