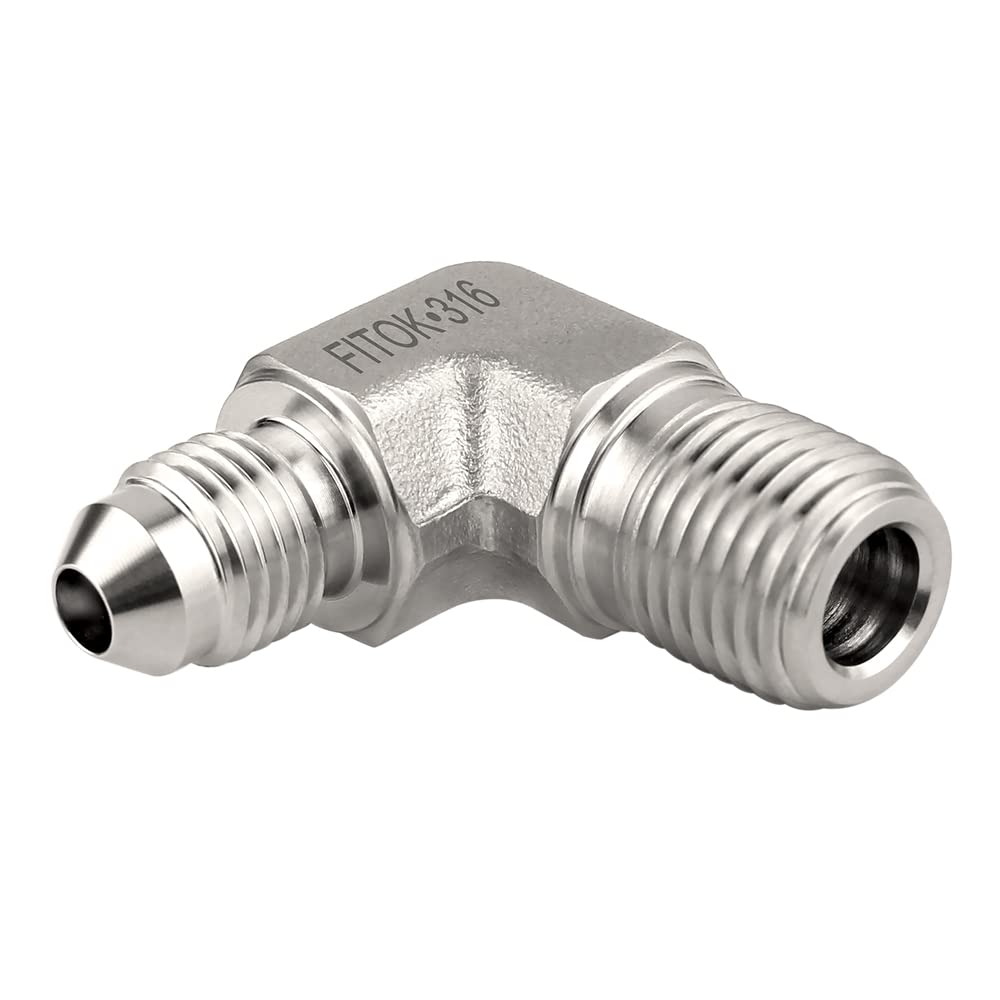

FITOK 37° Flared Tube Fitting Elbow Male JIC × Male NPT, 316 Stainless Steel

SKU: Part Number: SS-LM-AN4-NS4

$18.61 USD

Sale Sold out

In stock

Reference SAE 070202. Maximum allowable working pressure 5000 psi (varies by size — see chart below)
Made from high quality 316 stainless steel for superior mechanical strength and excellent resistance to corrosion.
Precision engineered to provide leak-tight connections for high pressure fluid applications. Hardened threads with a smooth finish avoid galling, enabling easy assembly and extended fitting service life.
Designed and manufactured in compliance with SAE J514
Every FITOK fitting is engraved with details including connection size and type, brand name, material, and heat number, ensuring proper identification, traceability, and quality control.

Part Number	Material	Connection 1 Type	Connection 1 Size	Connection 2 Type	Connection 2 Size	Max Working Pressure
SS-LM-AN4-NS4	316 Stainless Steel	Male JIC	1/4"	Male NPT	1/4"	5000 psi
SS-LM-AN4-NS6	316 Stainless Steel	Male JIC	1/4"	Male NPT	3/8"	5000 psi

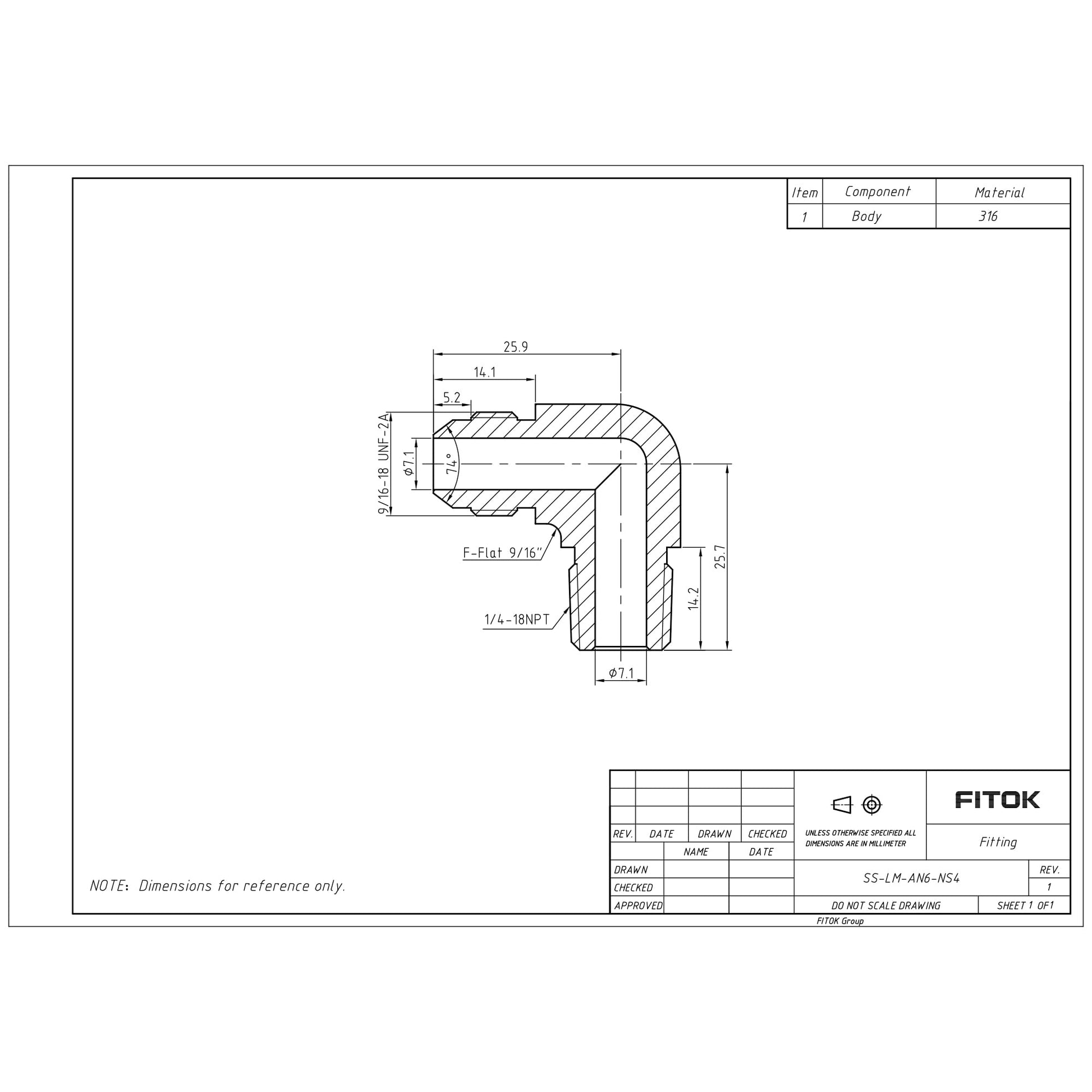

SS-LM-AN6-NS4	316 Stainless Steel	Male JIC	3/8"	Male NPT	1/4"	5000 psi

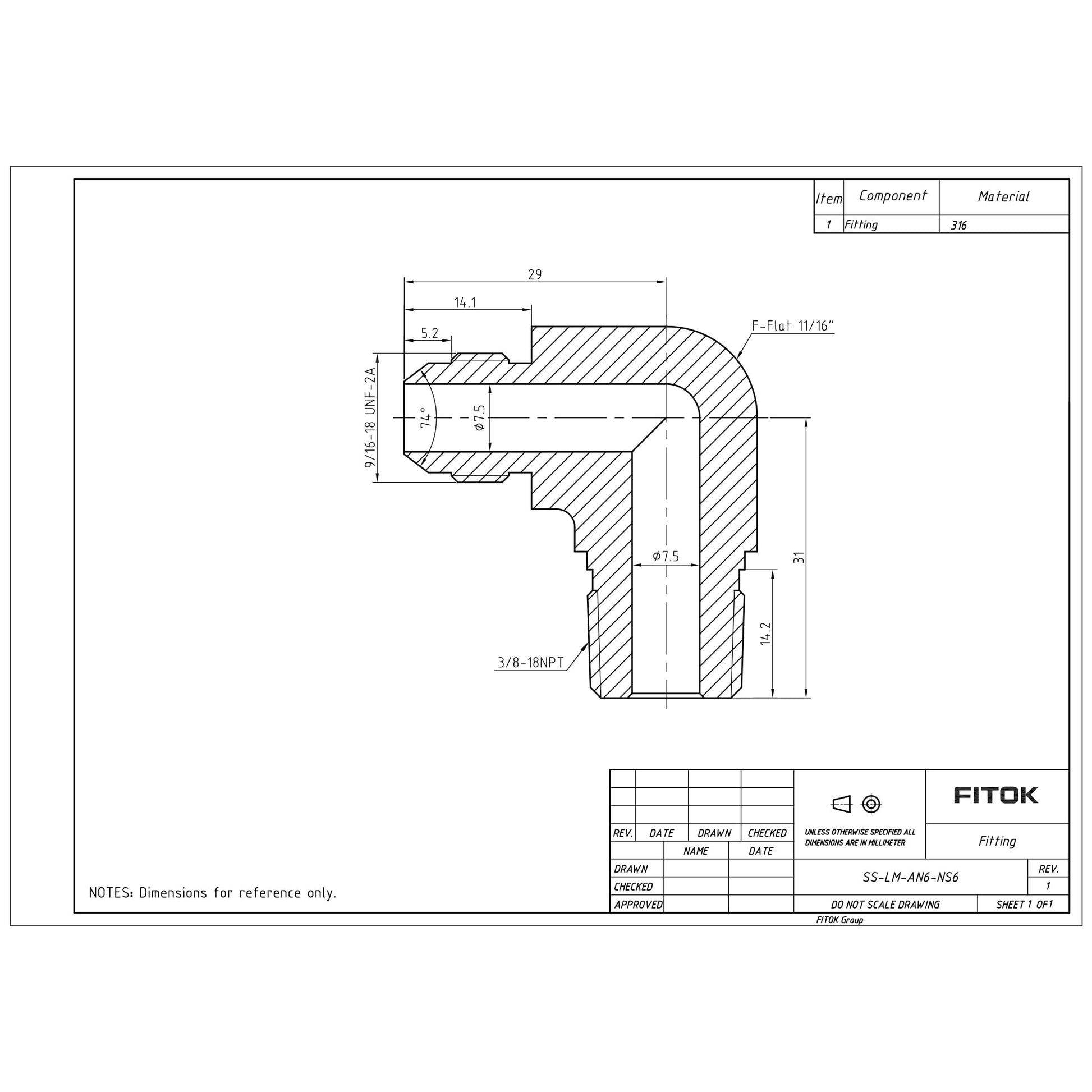

SS-LM-AN6-NS6	316 Stainless Steel	Male JIC	3/8"	Male NPT	3/8"	5000 psi

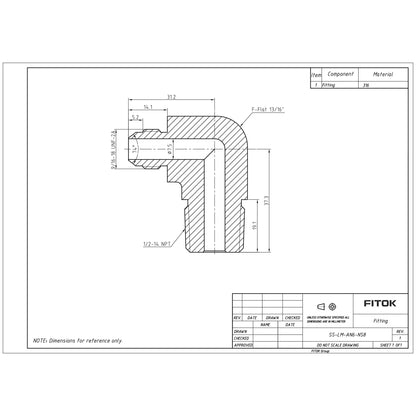

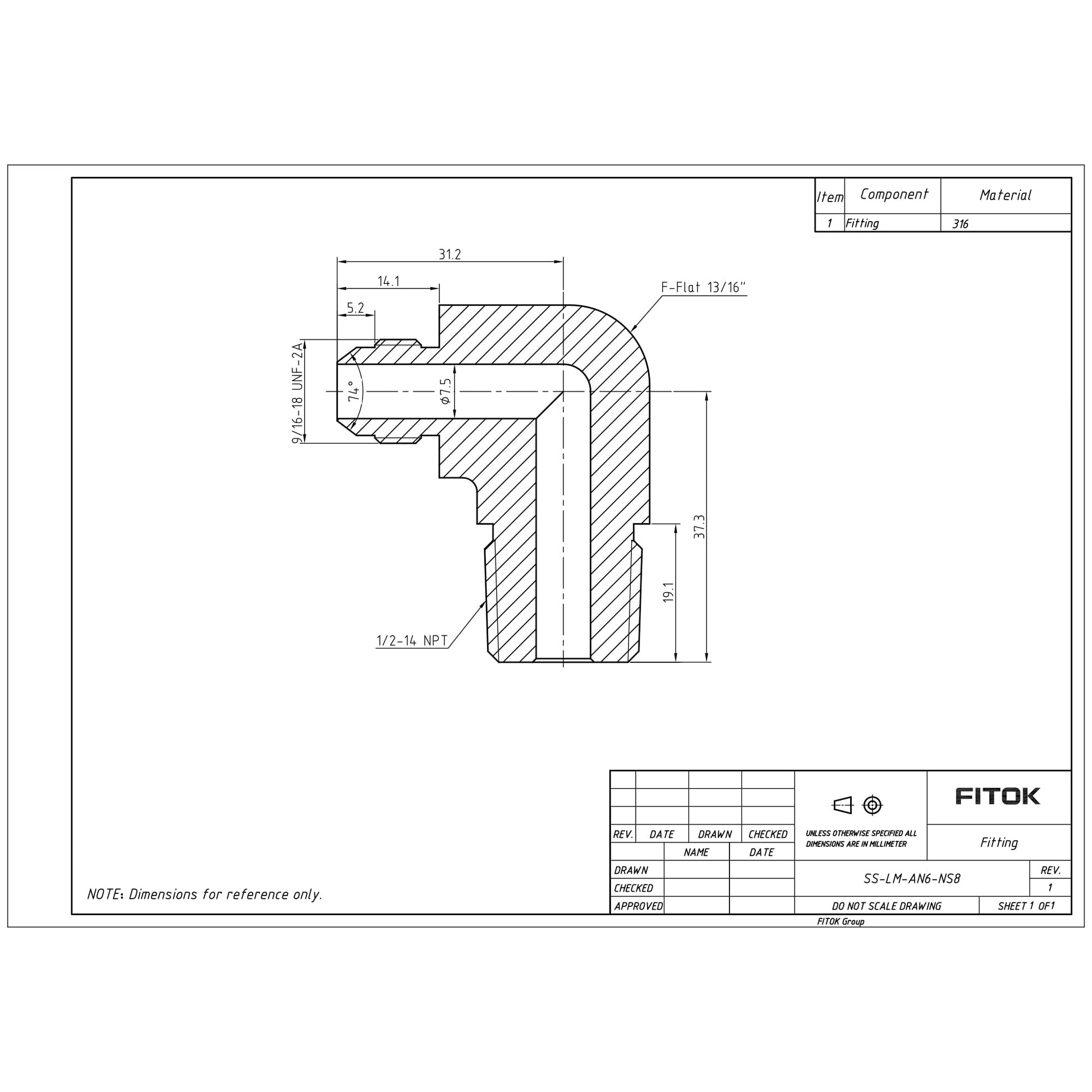

SS-LM-AN6-NS8	316 Stainless Steel	Male JIC	3/8"	Male NPT	1/2"	5000 psi
SS-LM-AN8-NS6	316 Stainless Steel	Male JIC	1/2"	Male NPT	3/8"	4500 psi
SS-LM-AN8-NS8	316 Stainless Steel	Male JIC	1/2"	Male NPT	1/2"	4500 psi
SS-LM-AN12-NS12	316 Stainless Steel	Male JIC	3/4"	Male NPT	3/4"	3500 psi

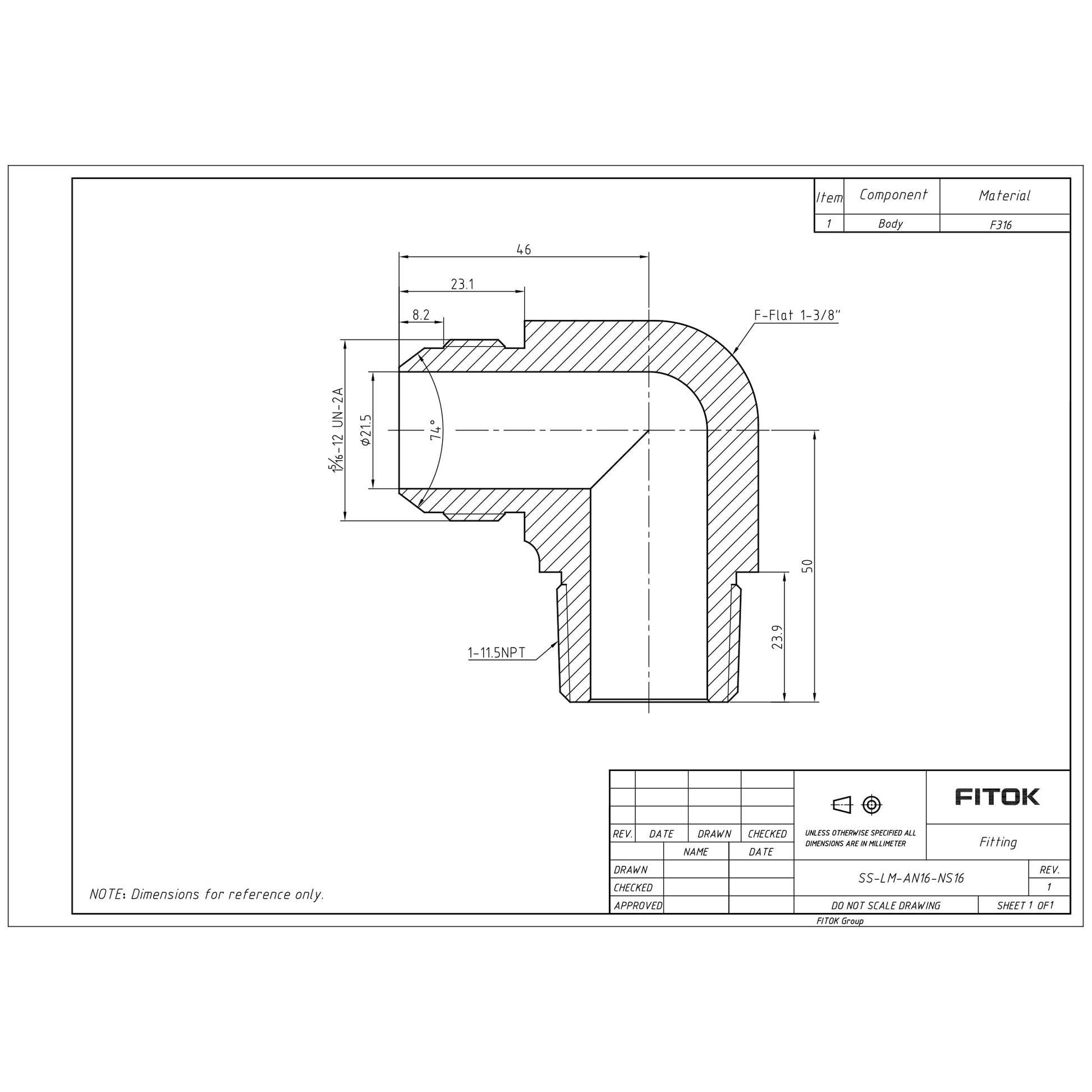

SS-LM-AN16-NS16	316 Stainless Steel	Male JIC	1"	Male NPT	1"	3000 psi

Part Number SS-LM-AN4-NS4

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 1/4"

Connection 2 Type Male NPT

Connection 2 Size 1/4"

Max Working Pressure 5000 psi

Part Number SS-LM-AN4-NS6

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 1/4"

Connection 2 Type Male NPT

Connection 2 Size 3/8"

Max Working Pressure 5000 psi

Part Number SS-LM-AN6-NS4

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 3/8"

Connection 2 Type Male NPT

Connection 2 Size 1/4"

Max Working Pressure 5000 psi

Part Number SS-LM-AN6-NS6

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 3/8"

Connection 2 Type Male NPT

Connection 2 Size 3/8"

Max Working Pressure 5000 psi

Part Number SS-LM-AN6-NS8

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 3/8"

Connection 2 Type Male NPT

Connection 2 Size 1/2"

Max Working Pressure 5000 psi

Part Number SS-LM-AN8-NS6

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 1/2"

Connection 2 Type Male NPT

Connection 2 Size 3/8"

Max Working Pressure 4500 psi

Part Number SS-LM-AN8-NS8

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 1/2"

Connection 2 Type Male NPT

Connection 2 Size 1/2"

Max Working Pressure 4500 psi

Part Number SS-LM-AN12-NS12

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 3/4"

Connection 2 Type Male NPT

Connection 2 Size 3/4"

Max Working Pressure 3500 psi

Part Number SS-LM-AN16-NS16

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 1"

Connection 2 Type Male NPT

Connection 2 Size 1"

Max Working Pressure 3000 psi
