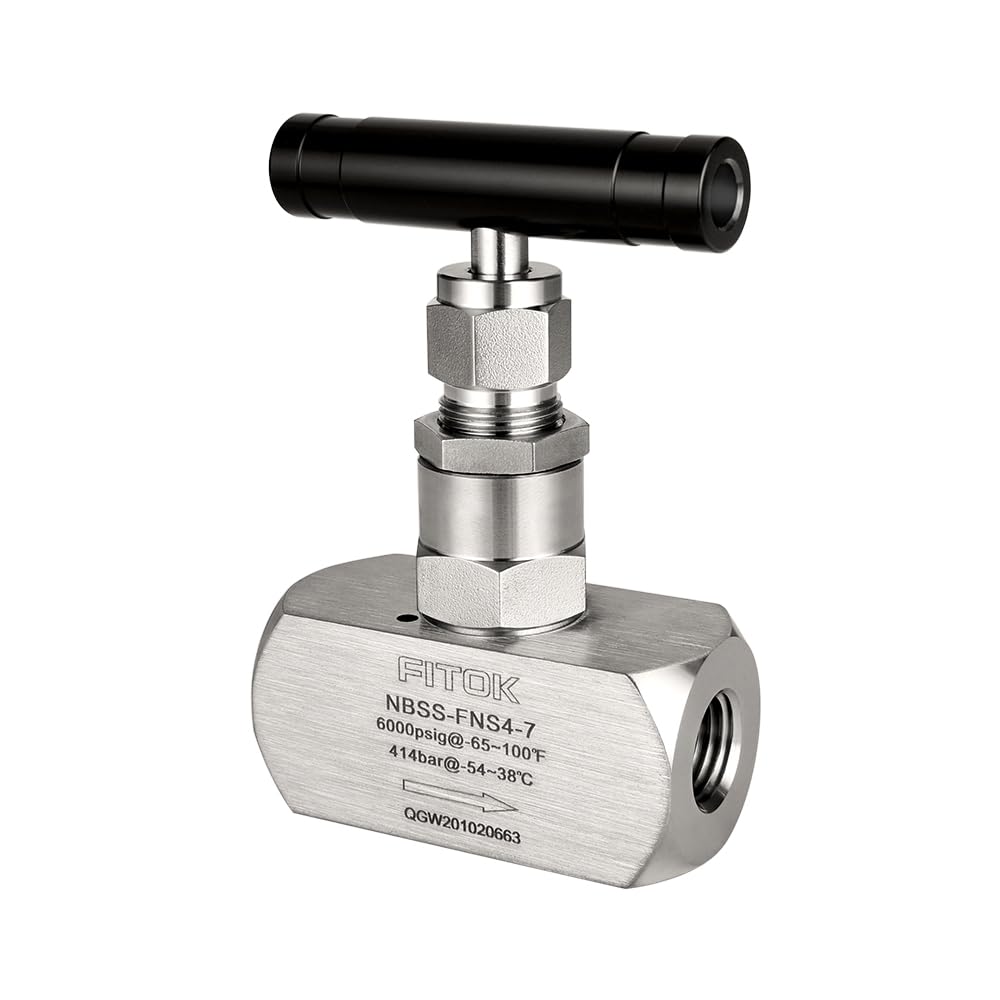

FITOK Screwed Bonnet Needle Valve 1/4" x 1/4" Female NPT 0.16" Orifice 6000 psig 316 Stainless Steel Body PTFE Packing, NBSS-FNS4-7

FITOK Screwed Bonnet Needle Valve 1/4" x 1/4" Female NPT 0.16" Orifice 6000 psig 316 Stainless Steel Body PTFE Packing, NBSS-FNS4-7

Part Number: NBSS-FNS4-7

$70.46 USD
$70.46 USD
Sale Sold out

In stock
View full details
  • 316 stainless steel cold drawn bar valve body. PTFE packing. 1/4 Female NPT inlet. 1/4 Female NPT outlet.
  • Working pressure up to 6000 psig. Working temperature -65°F to 450°F. 0.16" orifice.
  • Two-piece stem design. Upper stem threads cold rolled and lower stem hardened for extra strength and smooth operation. Upper stem thread lubricant isolated from system media. Linear instead of rotary motion of the rising non-rotating stem minimizes packing abrasion and reduces friction between seat and tip.
  • Steady and durable fastening of the handle by double lock-pins
  • Every valve is tested with nitrogen or compressed air for leak-tight performance at the maximum allowable working pressure
Part Number Material Connection 1 Type Connection 1 Size Connection 2 Type Connection 2 Size Max Working Pressure
NBSS-FNS4-7 316 Stainless Steel Female NPT 1/4" Female NPT 1/4" 6000 psig
Part Number NBSS-FNS4-7
Material 316 Stainless Steel
Connection 1 Type Female NPT
Connection 1 Size 1/4"
Connection 2 Type Female NPT
Connection 2 Size 1/4"
Max Working Pressure 6000 psig
