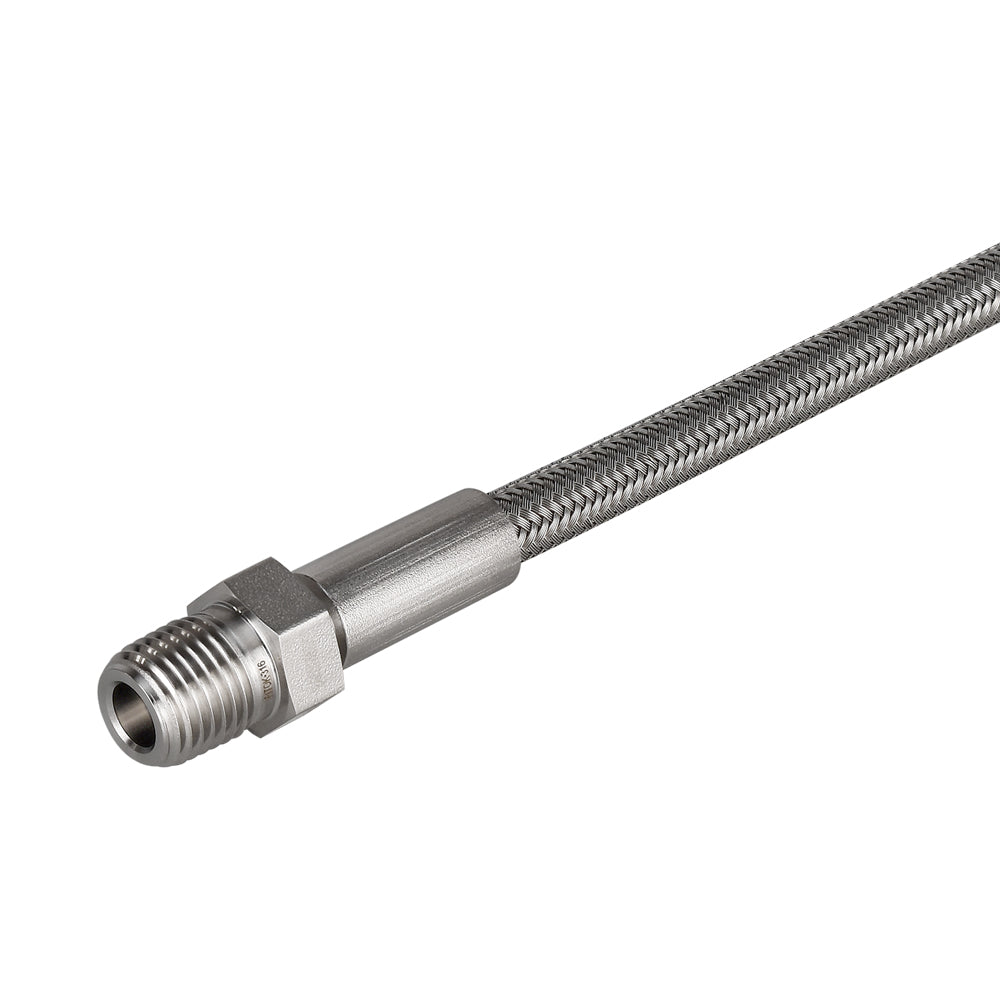

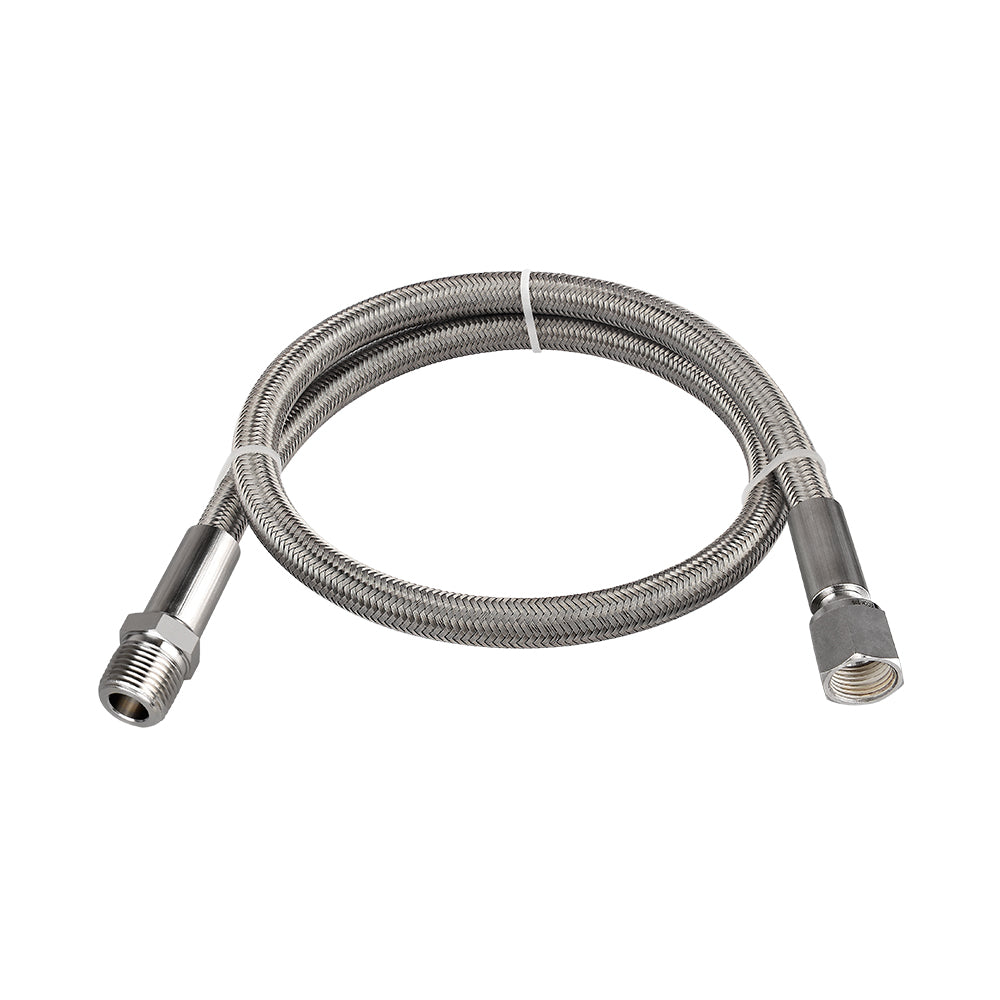

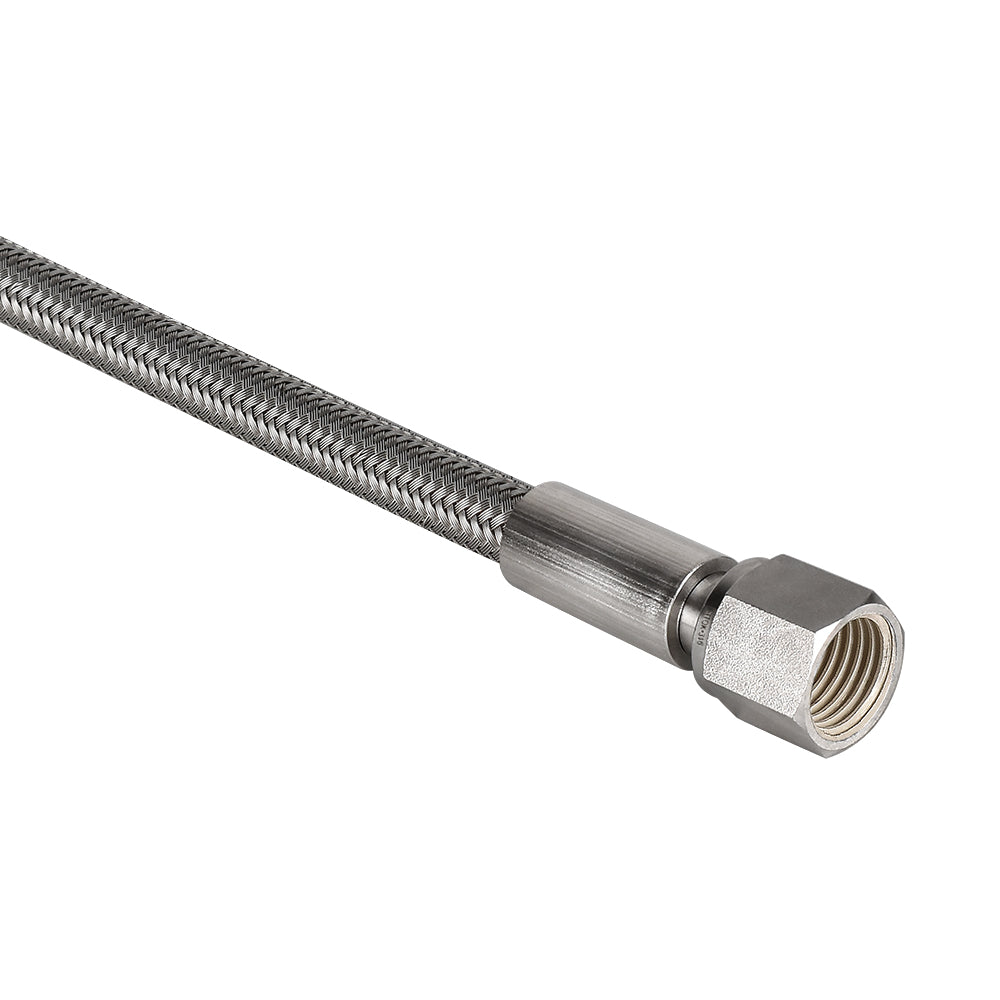

FITOK PTFE-Lined Stainless Steel Braided Hose 1/2" Nominal Hose Size 1/2" Male NPT x Female JIC 37° Flare Swivel 316 SS End Connections 2000 psi Chemically Compatible

FITOK PTFE-Lined Stainless Steel Braided Hose 1/2" Nominal Hose Size 1/2" Male NPT x Female JIC 37° Flare Swivel 316 SS End Connections 2000 psi Chemically Compatible

Part Number: SS-PS8-NS8-SAN8-F10

$80.68 USD
$80.68 USD
Sale Sold out

In stock
View full details
Nominal Hose Size 1/2"
Inside Diameter 0.41"
Minimum Inside Bend Radius 4.5"
Working Pressure Up to 2000 psi
Working Temperature
-65°F to 400°F
Materials

Smooth-bore PTFE core tube

304 Stainless steel overbraid

316 Stainless steel end connections
End Connections 1/2" Male NPT x 1/2" Female JIC Swivel

Premium Construction

  • Smooth-Bore PTFE Core

    • Broad chemical compatibility
    • Low-friction flow
    • Non-contaminating

  • 304 Stainless Steel Braided Reinforcement

    • Higher pressure capability
    • Protects against mechanical damage
    • Maintains flexibility and structural strength

  • 316 Stainless Steel End Connections

    • Corrosion resistance
    • Precision manufactured
    • Leak-tight performance

  • Quality Tested

    • Hydrostatically tested at 1.5× working pressure
    • Pneumatically tested at 1000 psig
    • Precision manufactured

Wide Range of Applications

Suitable for transporting a wide variety of compatible media:

  • Chemicals
  • Hydraulic Fluids
  • Industrial Gases
  • Solvents
  • Process Fluids
