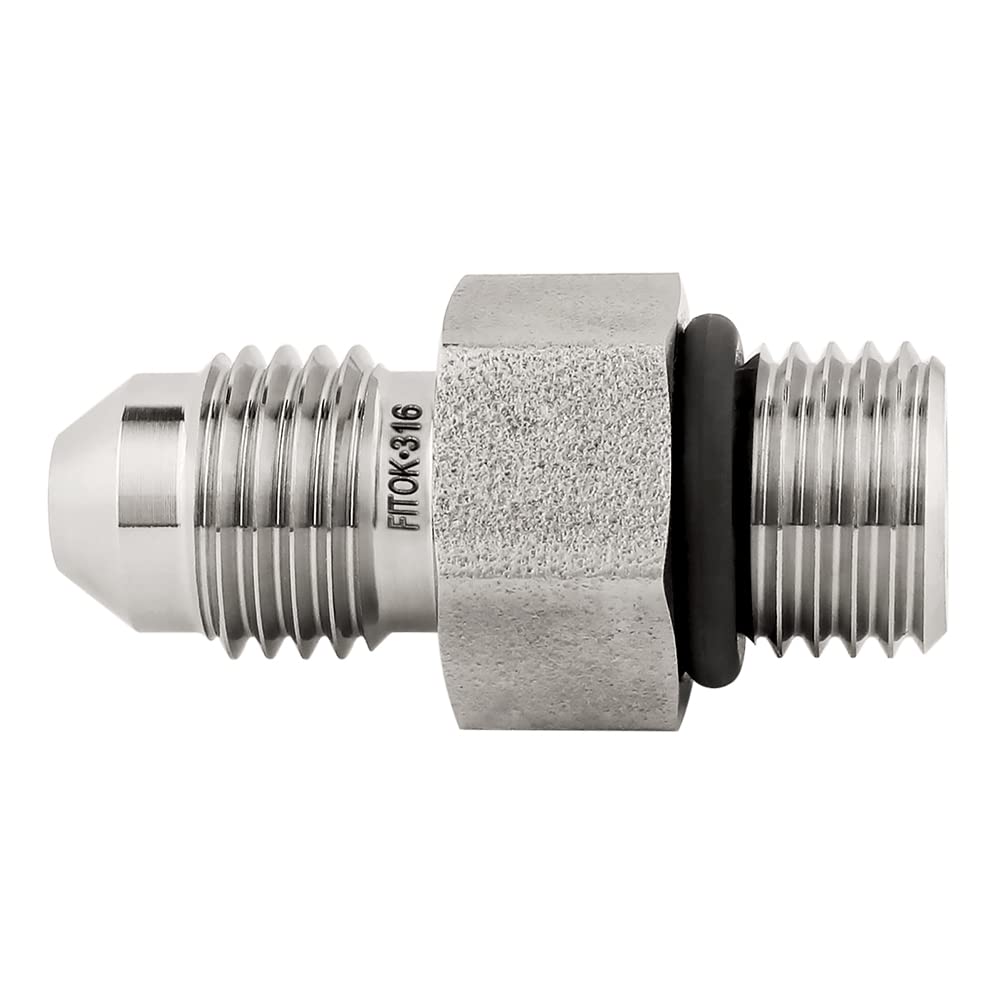

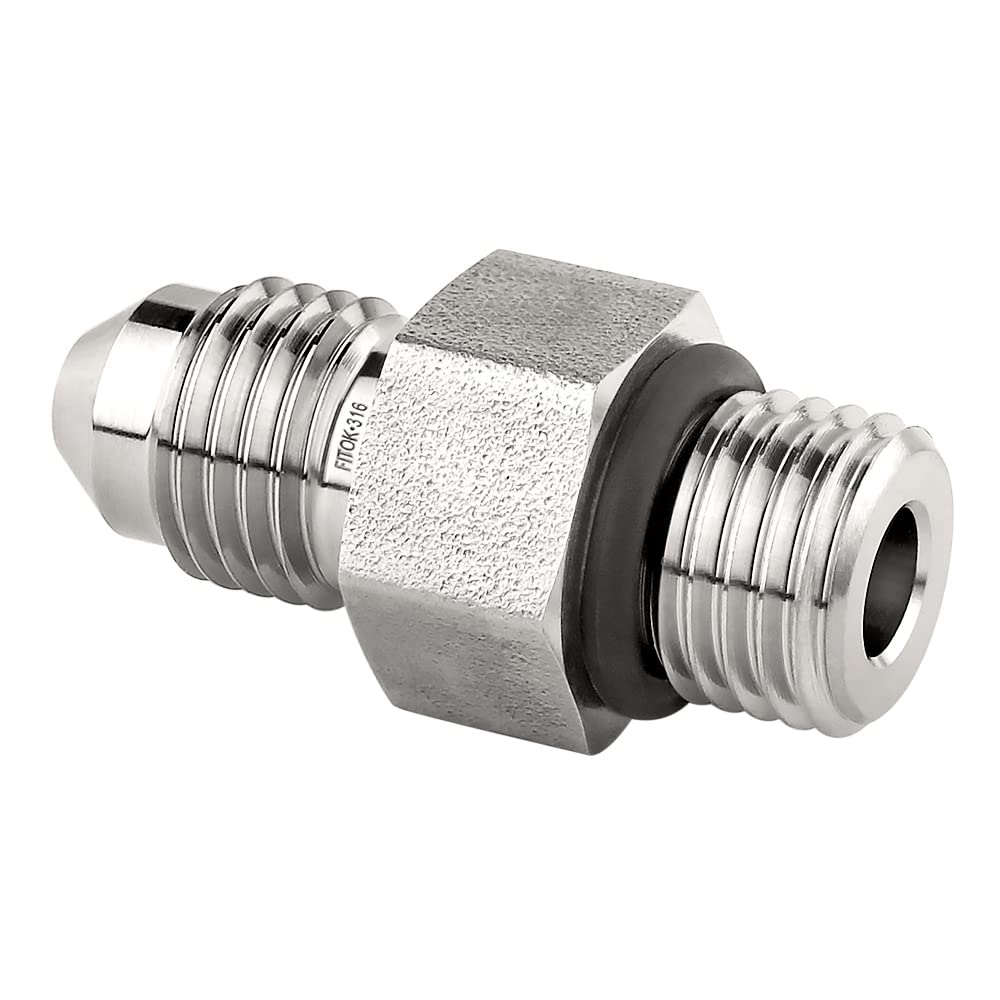

FITOK 37° Flared Tube Fitting Male JIC × Male SAE/MS Straight Thread, 316 Stainless Steel

SKU: Part Number: SS-CM-AN4-ST7

$13.16 USD

Sale Sold out

In stock

Reference SAE 070120. Maximum allowable working pressure 5000 psi (varies by size — see chart below)
Manufactured from high quality 316 stainless steel for superior mechanical strength and excellent resistance to corrosion.
Precision engineered to provide leak-tight connections for high pressure fluid and gas applications
Hardened threads for optimal performance and prolonged service life
Designed and manufactured in compliance with SAE J514
Every FITOK fitting is engraved with details including connection size and type, brand name, material, and heat number, ensuring proper identification, traceability, and quality control.

Part Number	Material	Connection 1 Type	Connection 1 Size	Connection 2 Type	Connection 2 Size	Max Working Pressure
SS-CM-AN4-ST7	316 Stainless Steel	Male JIC	1/4“	Male SAE/MS Straight Thread	7/16-20	5000 psi
SS-CM-AN4-ST9	316 Stainless Steel	Male JIC	1/4“	Male SAE/MS Straight Thread	9/16-18	5000 psi
SS-CM-AN8-ST12	316 Stainless Steel	Male JIC	1/2”	Male SAE/MS Straight Thread	3/4-16	4500 psi
SS-CM-AN8-ST17	316 Stainless Steel	Male JIC	1/2”	Male SAE/MS Straight Thread	1 1/16-12	3500 psi
SS-CM-AN12-ST17	316 Stainless Steel	Male JIC	3/4“	Male SAE/MS Straight Thread	1 1/16-12	3500 psi

Part Number SS-CM-AN4-ST7

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 1/4“

Connection 2 Type Male SAE/MS Straight Thread

Connection 2 Size 7/16-20

Max Working Pressure 5000 psi

Part Number SS-CM-AN4-ST9

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 1/4“

Connection 2 Type Male SAE/MS Straight Thread

Connection 2 Size 9/16-18

Max Working Pressure 5000 psi

Part Number SS-CM-AN8-ST12

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 1/2”

Connection 2 Type Male SAE/MS Straight Thread

Connection 2 Size 3/4-16

Max Working Pressure 4500 psi

Part Number SS-CM-AN8-ST17

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 1/2”

Connection 2 Type Male SAE/MS Straight Thread

Connection 2 Size 1 1/16-12

Max Working Pressure 3500 psi

Part Number SS-CM-AN12-ST17

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 3/4“

Connection 2 Type Male SAE/MS Straight Thread

Connection 2 Size 1 1/16-12

Max Working Pressure 3500 psi
