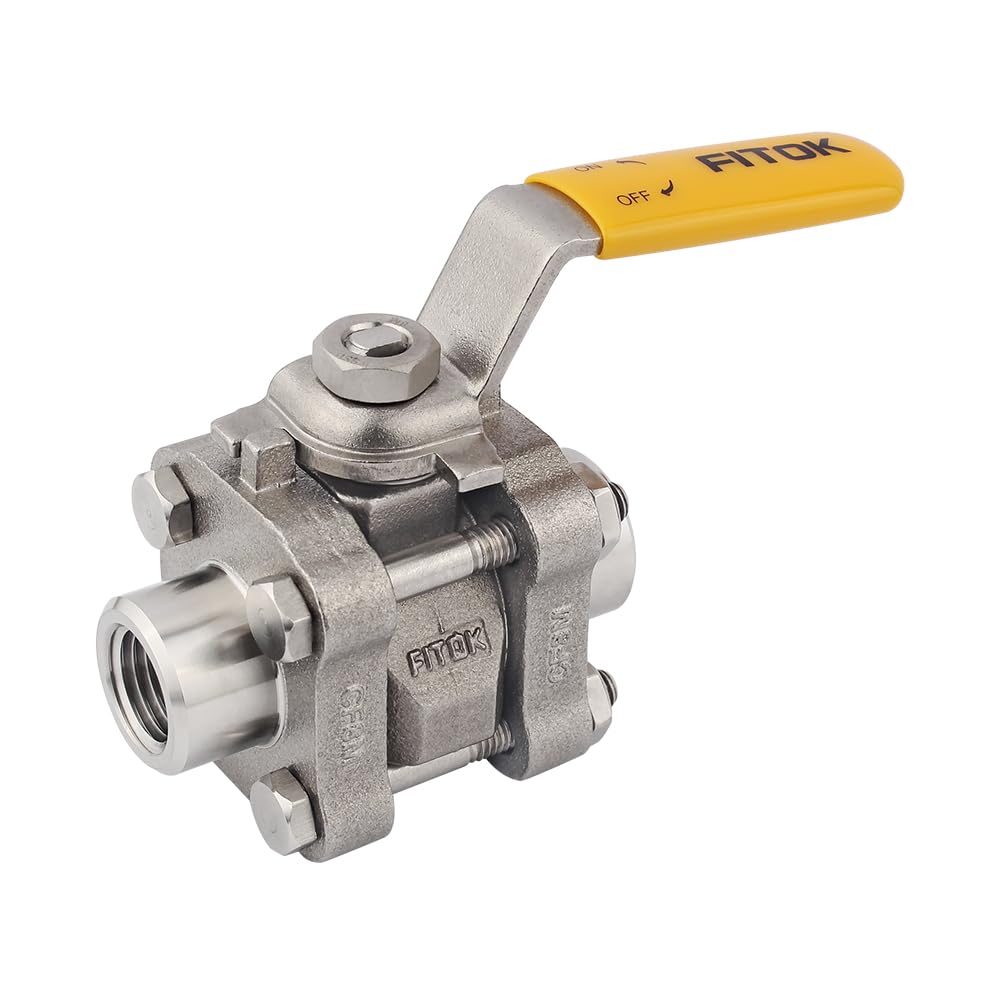

FITOK 3-Piece Ball Valve 1/4" x 1/4" Female NPT Straight 0.28" Orifice 2500 psig CF8M Stainless Steel Body Reinforced PTFE Seats

FITOK 3-Piece Ball Valve 1/4" x 1/4" Female NPT Straight 0.28" Orifice 2500 psig CF8M Stainless Steel Body Reinforced PTFE Seats

Part Number: BHSS-FNS4-R07

$87.32 USD
$87.32 USD
Sale Sold out

In stock
View full details
  • Three-piece precision cast body construction. Durable, reliable, and easily maintainable
  • CF8M Stainless Steel (ASME A351) valve body. Reinforced PTFE seat and packing. 316 Stainless Steel (ASME A479) Ball.
  • Working pressure up to 2500 psig. Working Temperature -20°F to 450°F.
  • Two-way bidirectional flow. 0.28" Orifice. Connection 1: 1/4" FNPT. Connection 2: 1/4" FNPT.
  • Every valve is tested with nitrogen or compressed air for leak-tight performance at the maximum allowable working pressure
Part Number Material Connection 1 Type Connection 1 Size Connection 2 Type Connection 2 Size Max Working Pressure
BHSS-FNS4-R07 316 Stainless Steel Female NPT 1/4" Female NPT 1/4" 2500 psig
Part Number BHSS-FNS4-R07
Material 316 Stainless Steel
Connection 1 Type Female NPT
Connection 1 Size 1/4"
Connection 2 Type Female NPT
Connection 2 Size 1/4"
Max Working Pressure 2500 psig
