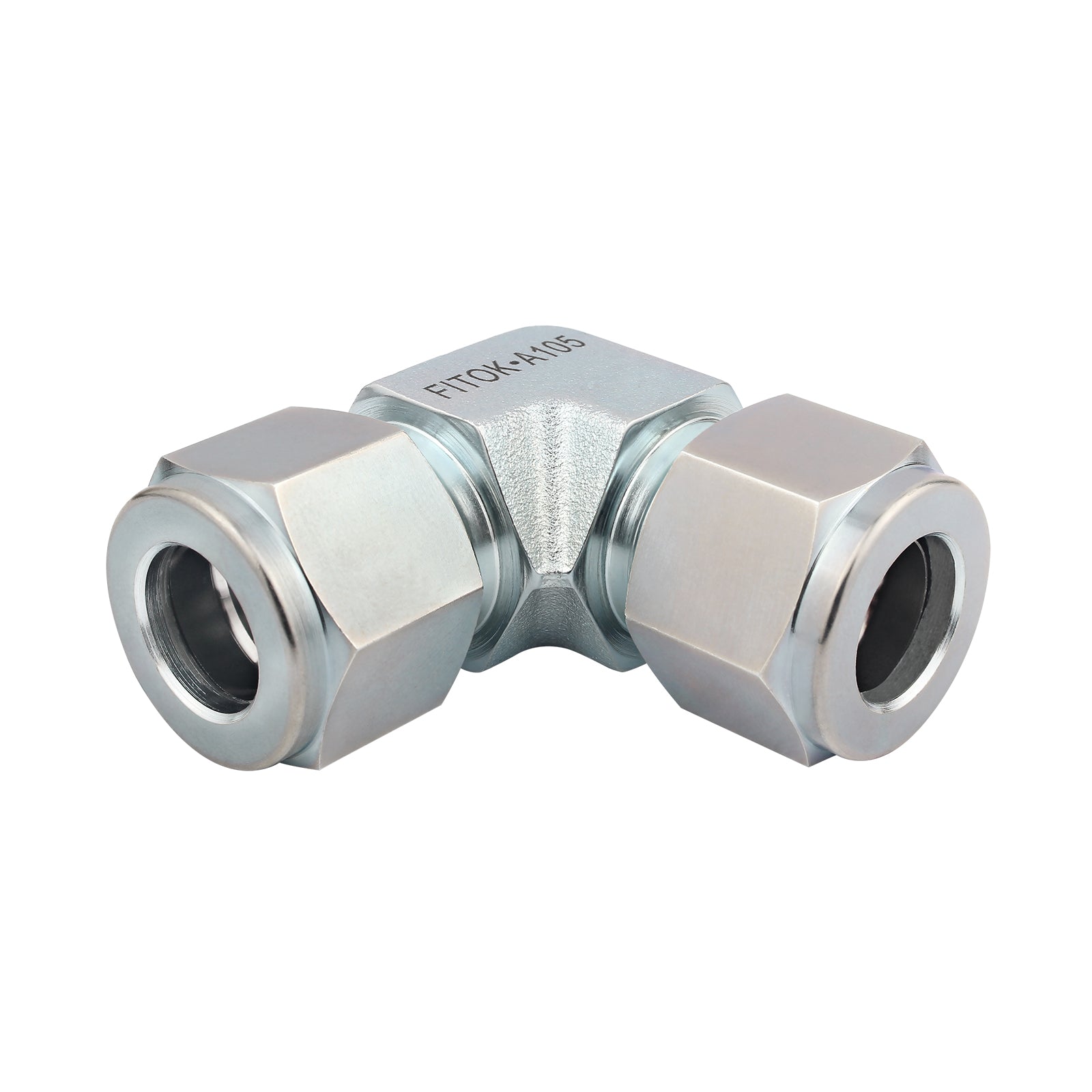

FITOK Tube OD Zinc Plated Carbon Steel Compression Tube Fitting with Double Ferrules 90° Union Elbow

SKU: Part Number: CS-LU-FL4

$10.99 USD

Sale Sold out

In stock

Union elbow with double ferrule tube fitting ends connecting to fractional tubing
Precision machined components ensure perfect deformation of the ferrules and tubing providing leak-tight and vibration-resistant connections
Zinc plated steel guards against corrosion
Maximum allowable working pressure 9600 psi
Comply with ASME B31.3, ASTM A105

	Material	End Connection 1	End Connection 2	Max. Working Pressure	Testing
DOT-3E Sample Cylinder 300 cm3	316L Stainless Steel	1/4" Female NPT	1/4" Female NPT	1800 psig	Hydrostatically tested at 3050 psig (210 bar) minimum
DOT-3A Sample Cylinder 1000 cm3	316L Stainless Steel	1/4" Female NPT	1/4" Female NPT	1800 psig	Hydrostatically tested at 3000 psig (206 bar) minimum

Model DOT-3E Sample Cylinder 300 cm3

Material 316L Stainless Steel

End Connection 1 1/4" Female NPT

End Connection 2 1/4" Female NPT

Max. Working Pressure 1800 psig

Testing Hydrostatically tested at 3050 psig (210 bar) minimum

Model DOT-3A Sample Cylinder 1000 cm3

Material 316L Stainless Steel

End Connection 1 1/4" Female NPT

End Connection 2 1/4" Female NPT

Max. Working Pressure 1800 psig

Testing Hydrostatically tested at 3000 psig (206 bar) minimum
