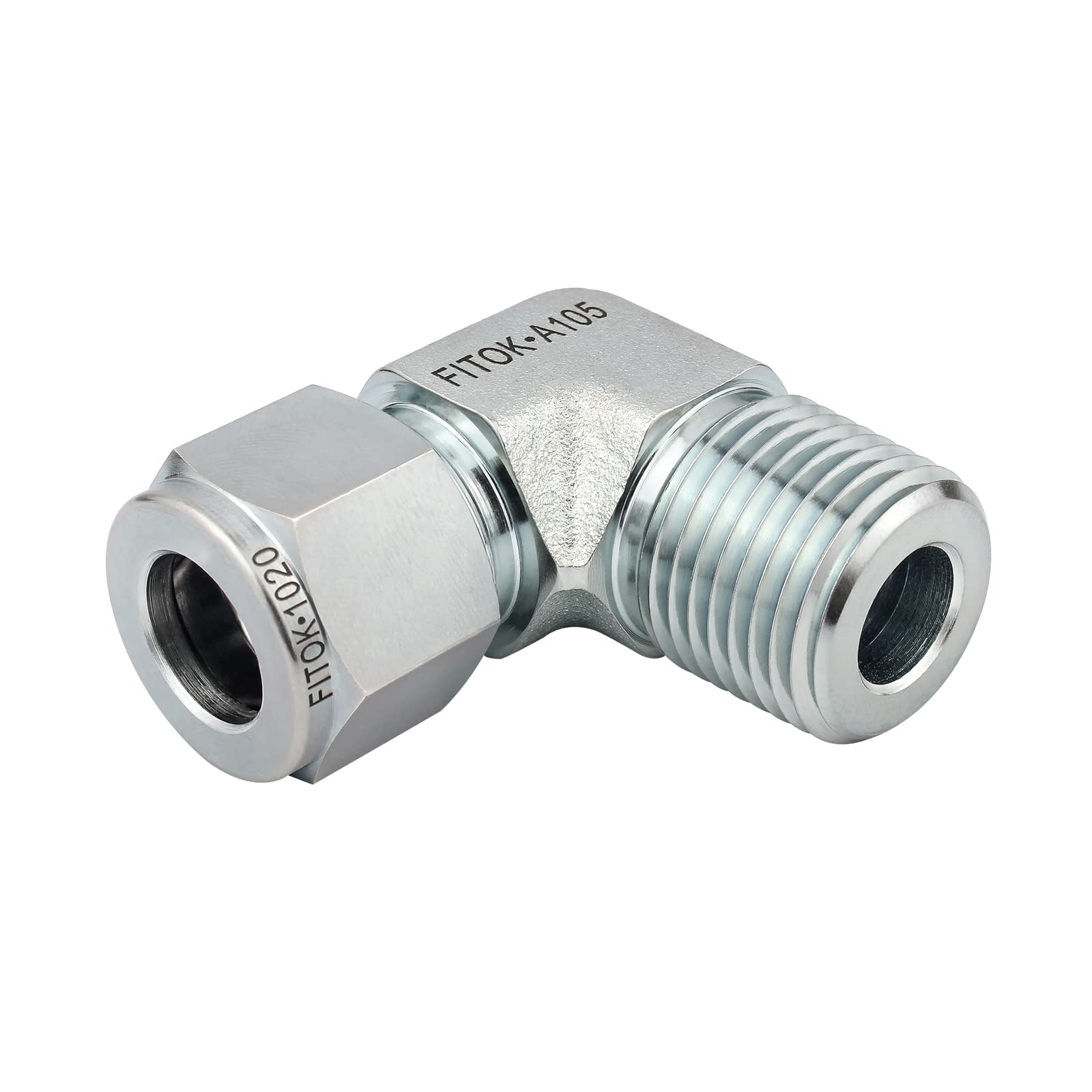

FITOK Tube OD × Male NPT Zinc Plated Carbon Steel Compression Tube Fitting with Double Ferrules 90° Male Elbow

SKU: Part Number: CS-LM-FL4-NS4

$10.09 USD

Sale Sold out

In stock

90 Degree elbow adapter with double ferrule compression tube fitting on one end and male NPT connection on the other end
Precision machined components ensure perfect deformation of the ferrules and tubing providing leak-tight and vibration-resistant connections
Zinc plated steel guards against corrosion
Maximum allowable working pressure 8000 psi
Comply with ASME B31.3, ASTM A105

Part Number	Material	Connection 1 Type	Connection 1 Size	Connection 2 Type	Connection 2 Size	Max Working Pressure
CS-LM-FL4-NS4	Carbon steel	Tube Fitting	1/4"	Male NPT	1/4"	8000 psi
CS-LM-FL6-NS4	Carbon steel	Tube Fitting	3/8"	Male NPT	1/4"	6200 psi
CS-LM-FL6-NS6	Carbon steel	Tube Fitting	3/8"	Male NPT	3/8"	6200 psi
CS-LM-FL8-NS4	Carbon steel	Tube Fitting	1/2"	Male NPT	1/4"	5900 psi
CS-LM-FL8-NS8	Carbon steel	Tube Fitting	1/2"	Male NPT	1/2"	5900 psi
CS-LM-FL8-NS12	Carbon steel	Tube Fitting	1/2"	Male NPT	3/4"	5900 psi
CS-LM-FL12-NS8	Carbon steel	Tube Fitting	3/4"	Male NPT	1/2"	5100 psi
CS-LM-FL12-NS12	Carbon steel	Tube Fitting	3/4"	Male NPT	3/4"	5100 psi

Part Number CS-LM-FL4-NS4

Material Carbon steel

Connection 1 Type Tube Fitting

Connection 1 Size 1/4"

Connection 2 Type Male NPT

Connection 2 Size 1/4"

Max Working Pressure 8000 psi

Part Number CS-LM-FL6-NS4

Material Carbon steel

Connection 1 Type Tube Fitting

Connection 1 Size 3/8"

Connection 2 Type Male NPT

Connection 2 Size 1/4"

Max Working Pressure 6200 psi

Part Number CS-LM-FL6-NS6

Material Carbon steel

Connection 1 Type Tube Fitting

Connection 1 Size 3/8"

Connection 2 Type Male NPT

Connection 2 Size 3/8"

Max Working Pressure 6200 psi

Part Number CS-LM-FL8-NS4

Material Carbon steel

Connection 1 Type Tube Fitting

Connection 1 Size 1/2"

Connection 2 Type Male NPT

Connection 2 Size 1/4"

Max Working Pressure 5900 psi

Part Number CS-LM-FL8-NS8

Material Carbon steel

Connection 1 Type Tube Fitting

Connection 1 Size 1/2"

Connection 2 Type Male NPT

Connection 2 Size 1/2"

Max Working Pressure 5900 psi

Part Number CS-LM-FL8-NS12

Material Carbon steel

Connection 1 Type Tube Fitting

Connection 1 Size 1/2"

Connection 2 Type Male NPT

Connection 2 Size 3/4"

Max Working Pressure 5900 psi

Part Number CS-LM-FL12-NS8

Material Carbon steel

Connection 1 Type Tube Fitting

Connection 1 Size 3/4"

Connection 2 Type Male NPT

Connection 2 Size 1/2"

Max Working Pressure 5100 psi

Part Number CS-LM-FL12-NS12

Material Carbon steel

Connection 1 Type Tube Fitting

Connection 1 Size 3/4"

Connection 2 Type Male NPT

Connection 2 Size 3/4"

Max Working Pressure 5100 psi
