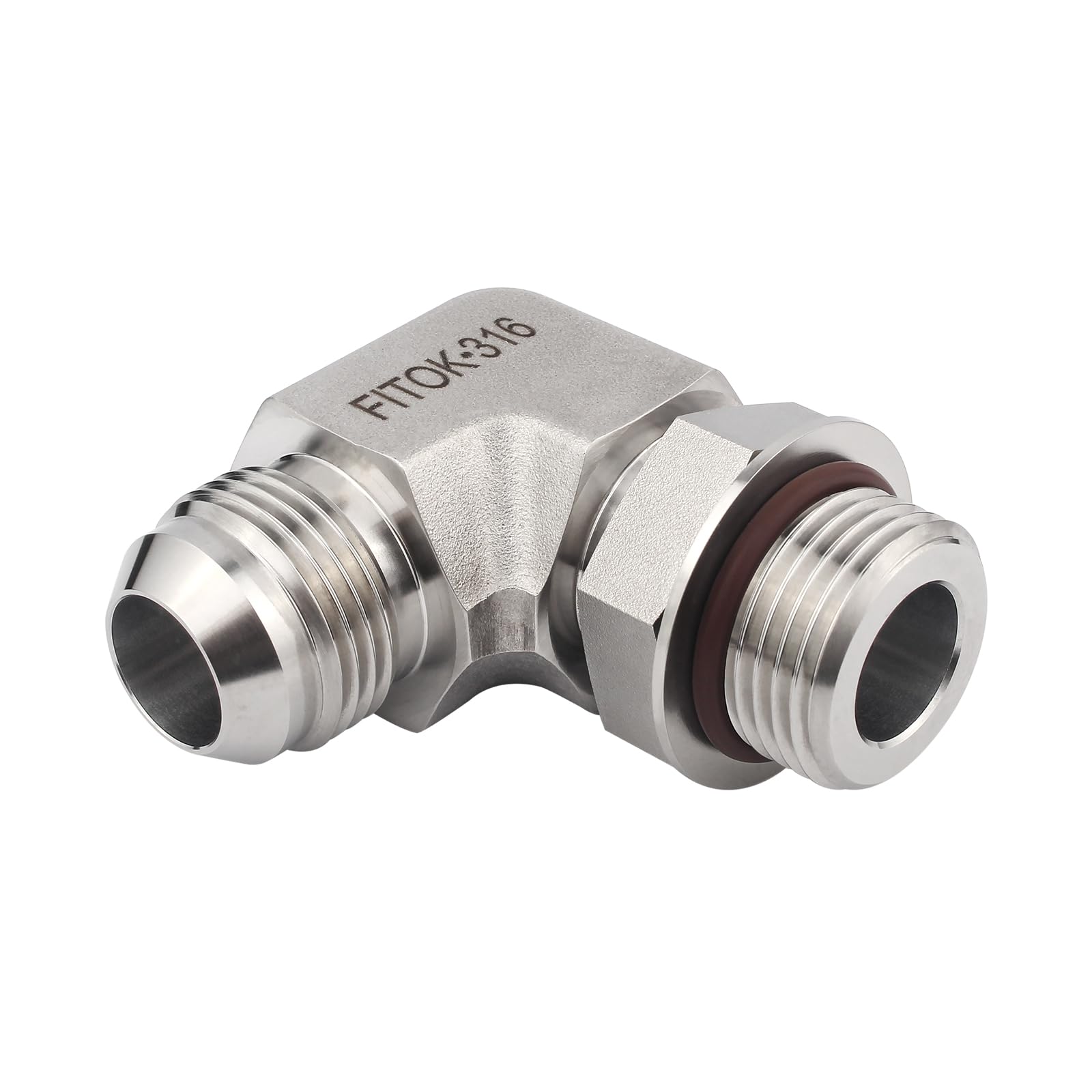

FITOK 37° Flared Tube Fitting Positionable Elbow Male JIC × Male SAE/MS Straight Thread, 316 Stainless Steel

SKU: Part Number: SS-LP-AN12-ST17

$61.39 USD

Sale Sold out

In stock

Reference SAE 070220. Maximum allowable working pressure 3500 psi (varies by size — see chart below)
Fitting is made from high quality 316 stainless steel for superior mechanical strength and excellent resistance to corrosion. O-ring material is 90 durometer fluorocarbon (FKM) offering advantages such as strong sealing, chemical resistance, high-temperature stability, mechanical durability, low compression set, and resistance to oils and fuels.

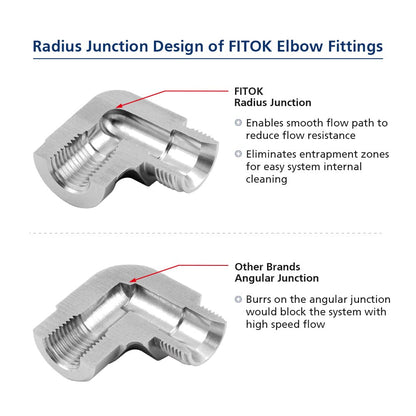

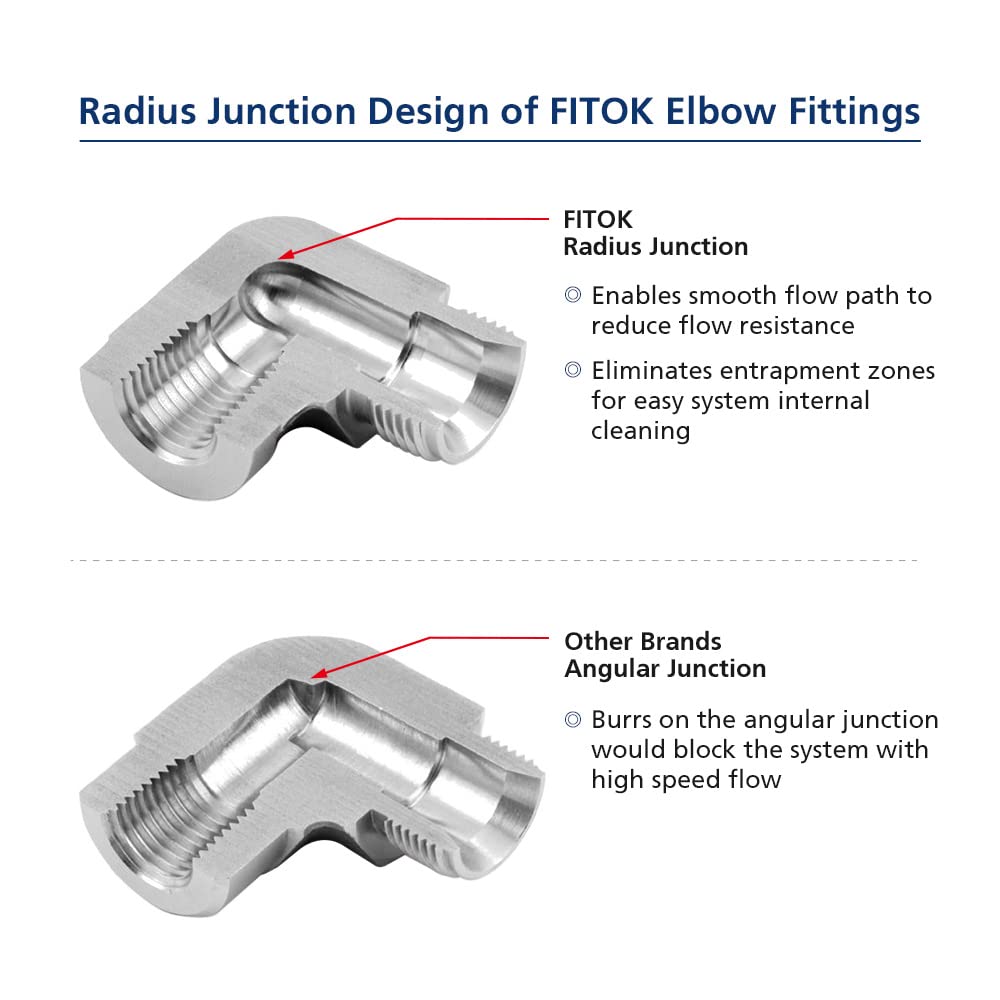

Hardened threads with smooth surface finish avoid galling and help extend service life of the fitting. Features radius junction design inside the elbow, providing smooth flow path, minimizing flow resistance and enabling easy system cleaning.
Precision engineered to provide leak-tight connections for high pressure gas and liquid applications. Designed and manufactured in compliance with SAE J514.
Every FITOK fitting is engraved with details including connection size and type, brand name, material, and heat number, ensuring proper identification, traceability, and quality control.

Part Number	Material	Connection 1 Type	Connection 1 Size	Connection 2 Type	Connection 2 Size	Max Working Pressure
SS-LP-AN4-ST7	316 Stainless Steel	Male JIC	1/4"	Male SAE/MS Straight Thread	7/16-20	5000 psi
SS-LP-AN12-ST17	316 Stainless Steel	Male JIC	3/4"	Male SAE/MS Straight Thread	1 1/16-12	3500 psi

Part Number SS-LP-AN4-ST7

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 1/4"

Connection 2 Type Male SAE/MS Straight Thread

Connection 2 Size 7/16-20

Max Working Pressure 5000 psi

Part Number SS-LP-AN12-ST17

Material 316 Stainless Steel

Connection 1 Type Male JIC

Connection 1 Size 3/4"

Connection 2 Type Male SAE/MS Straight Thread

Connection 2 Size 1 1/16-12

Max Working Pressure 3500 psi
